Dial Caliper

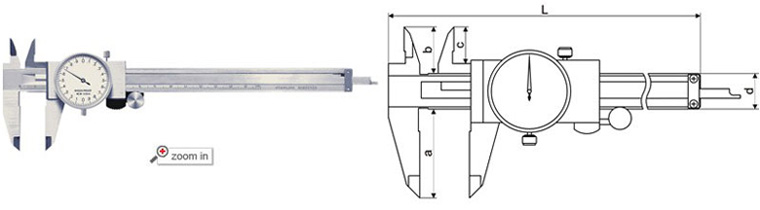

Dial Calipers(Mono Block Type A)

Technical Data

ID	Range mm	Graduation mm/inch	L mm	a mm	b mm	c mm	d mm	Remark
171-132A1	0-150		236	40	21	16.5	16
171-134A1	0-200	0.02	286	50	24	19.5	16

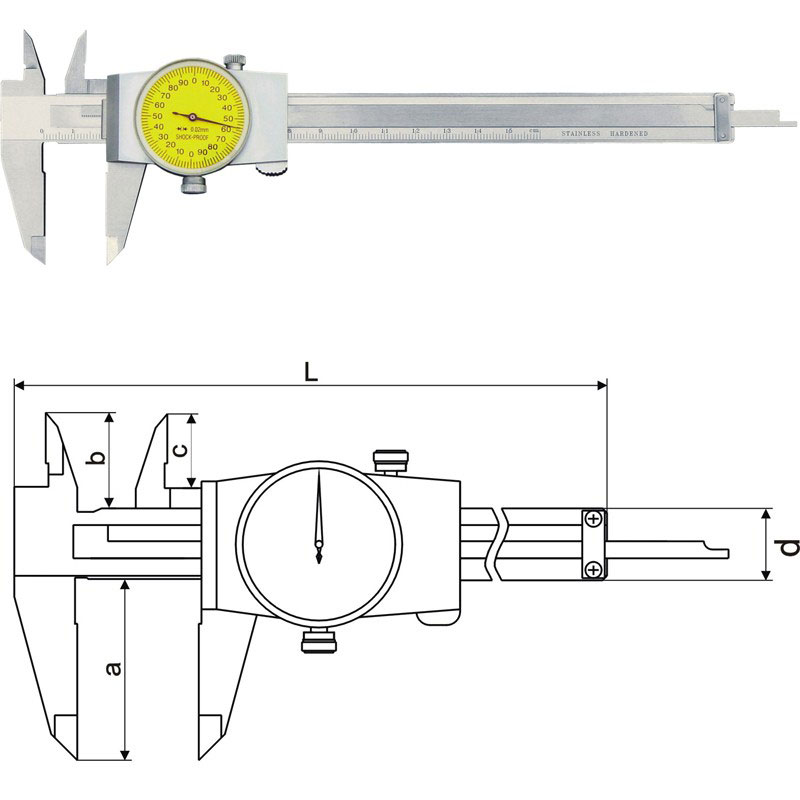

Dial Calipers(Open Block Type)

Technical Data

ID	Range inch | mm		Graduation mm/inch	L mm	a mm	b mm	c mm	d mm	Remark
171-143	0-6"		.001″	236	40	21	16.5	16
171-145	0-8"		.001″	286	50	24	19.5	16
171-147	0-12"		.001″	400	60	25	18.5	17
171-142		0-150	0.02	236	40	21	16.5	16
171-144		0-200	0.02	286	50	24	19.5	16
171-146		0-300	0.02	400	60	25	18.5	17

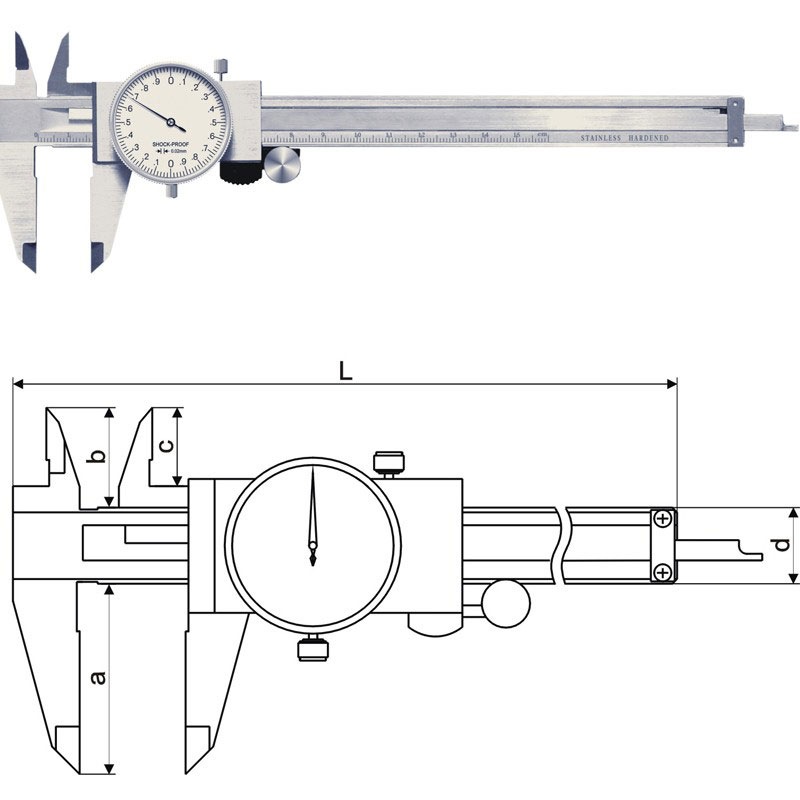

Dial Calipers(Mono Block Type B)

Technical Data

ID	Range mm	Graduation mm/inch	L mm	a mm	b mm	c mm	d mm	Remark
171-122A	0-150	0.01	236	40	21	16.5	16
171-132A	0-150	0.02	236	40	21	16.5	16
171-124A	0-200	0.01	286	50	24	19.5	16
171-134A	0-200	0.02	286	50	24	19.5	16
171-126A	0-300	0.01	400	60	25	18.5	17
171-136A	0-300	0.02	400	60	25	18.5	17

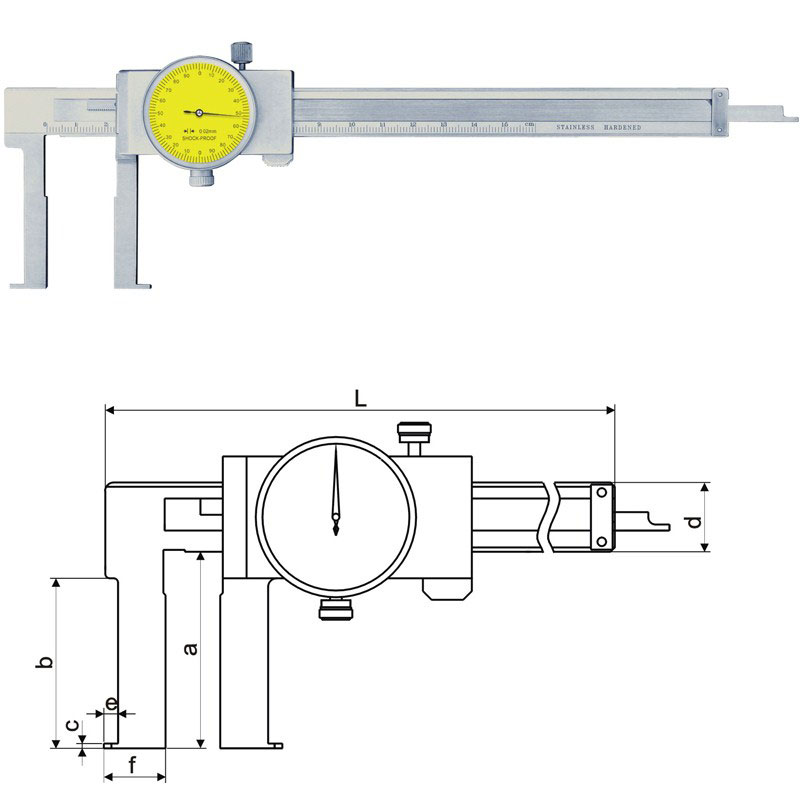

Inside Groove Dial Calipers With Flat Points

Features

* Facilitate measurement ofa dia-meter of a narrow groove in a hole
* Easy to read clearly
* The adjustable dial face can be fa-stened by a clamping screw

Technical Data

ID	Range mm	Graduation mm/inch	L mm	a mm	b mm	c mm	d mm	e mm	Remark
175-132-0	20-150	0.02	40	34	1	16	3	10
175-134	20-200	0.02	40	34	1.5	16	3	10
175-132	25-150	0.02	50	44	1.5	16	5	12.5
175-134-1	25-200	0.02	50	44	1.5	16	5	12.5
175-134-2	30-200	0.02	60	54	1.8	16	6	15

Outside Groove Dial Calipers With Flat Points

Features

* Can measure the diameter of outside groove ofa workplace
* Easy to read clearly
* The adjustable dial face can be fastened by a clamping screw

Technical Data

ID	Range mm	Graduation mm/inch	L mm	Remark
174-132-0	0-150	0.02	40
174-132	0-150	0.02	50
174-134-1	0-200	0.02	60

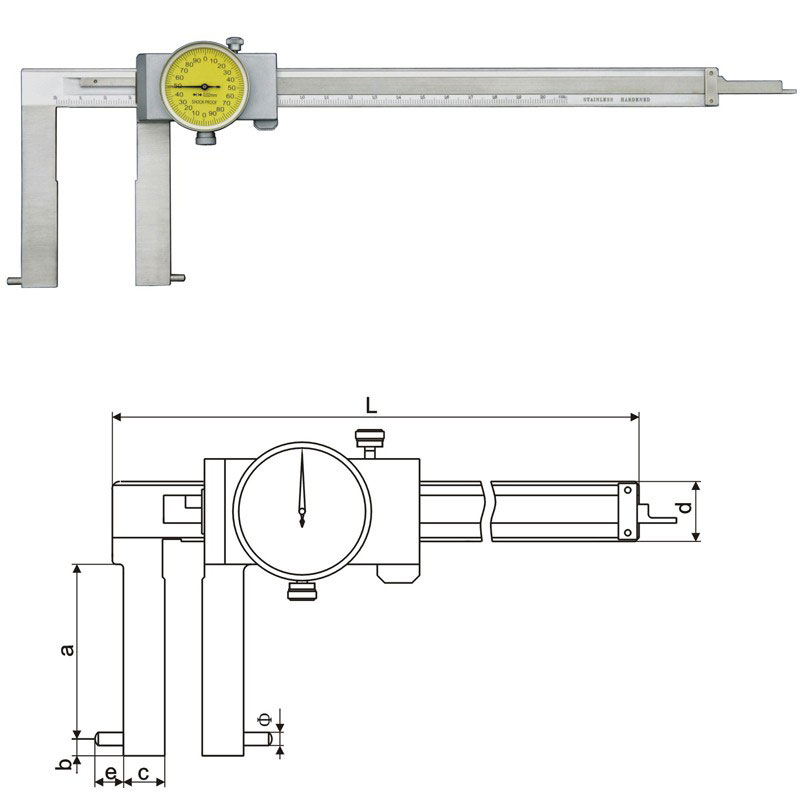

Inside Groove Dial Calipers With Round Points

Features

* Facilitating measurement of a diameter of a long groove in a hole
* Easy to read clearly
* The adjustable dial face can be fastened by a clamping screw

Technical Data

ID	Range mm	Graduation mm/inch	L mm	a mm	b mm	c mm	d mm	e mm	φ	Remark
175-332	20-150	0.02	236	34	3	7	16	3	2
175-334	20-200	0.02	286	34	3	7	16	3	3
175-332-1	25-150	0.02	236	44	3	8.5	16	4	2
175-334-1	25-200	0.02	286	44	3	8.5	16	4	3
175-334-2	30-200	0.02	286	54	3	9	16	5	3
175-336	30-300	0.02	400	44	3	10	17	5	3
175-336-1	30-300	0.02	400	54	3	10	17	5	3
175-336-2	40-300	0.02	400	64	3	15	17	5	3
175-336-3	40-300	0.02	400	74	3	15	17	5	3
175-336-4	50-300	0.02	400	84	3	15	17	10	3

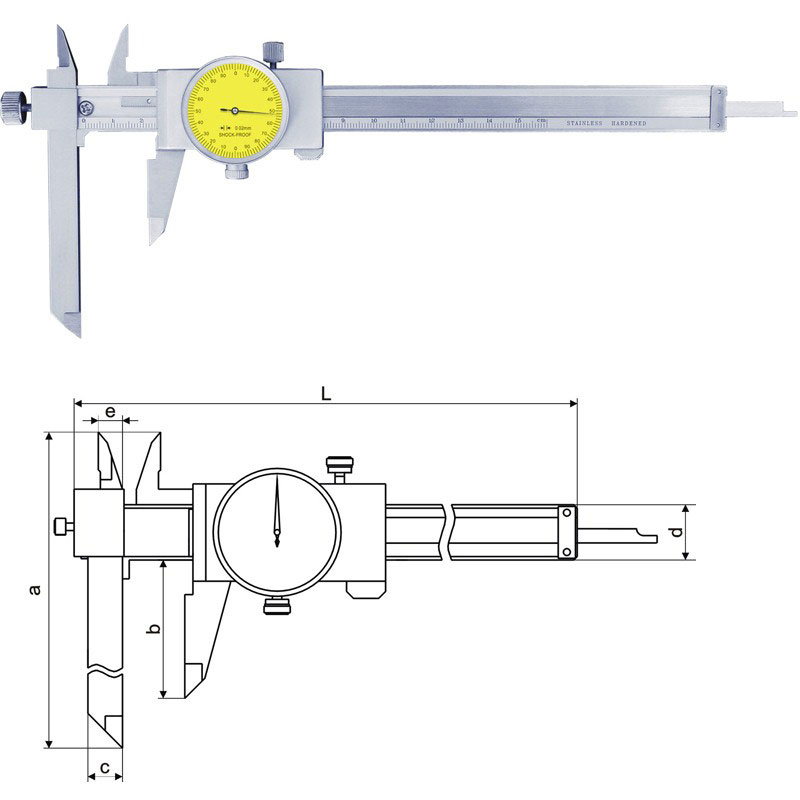

Offset Dial Calipers

Features

* Main scale jaw can be slid up and down to facilitate measurement of stepped sections
* Easy to read clearly
* With an adjustable dial face which can be fastened by a clamping screw

Technical Data

ID	Range mm	Graduation mm/inch	L mm	a mm	b mm	c mm	d mm	e mm	Remark
177-132	0-150	0.02	240	110	40	10	16	7
177-134	0-200	0.02	290	120	50	10	16	7

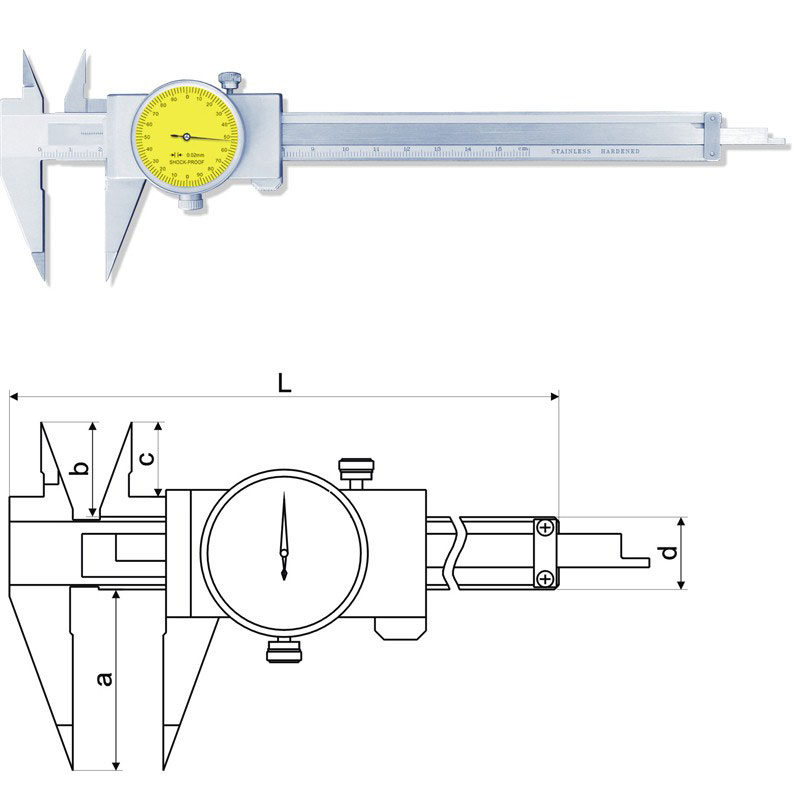

Point Dial Calipers

Features

* The narrow tip jaws fit into very small grooves and tracks, making many previously difficult outside measurements far easier to obtain
* Easy to read clearly
* An adjustable dial face can be fastened by a clamping screw

Technical Data

ID	Range mm	Graduation mm/inch	L mm	a mm	b mm	c mm	d mm	Remark
171-732	0-150	0.02	236	40	21	16.5	16
171-734	0-200	0.02	286	50	24	19.5	16
171-736	0-300	0.02	400	60	25	18.5	17

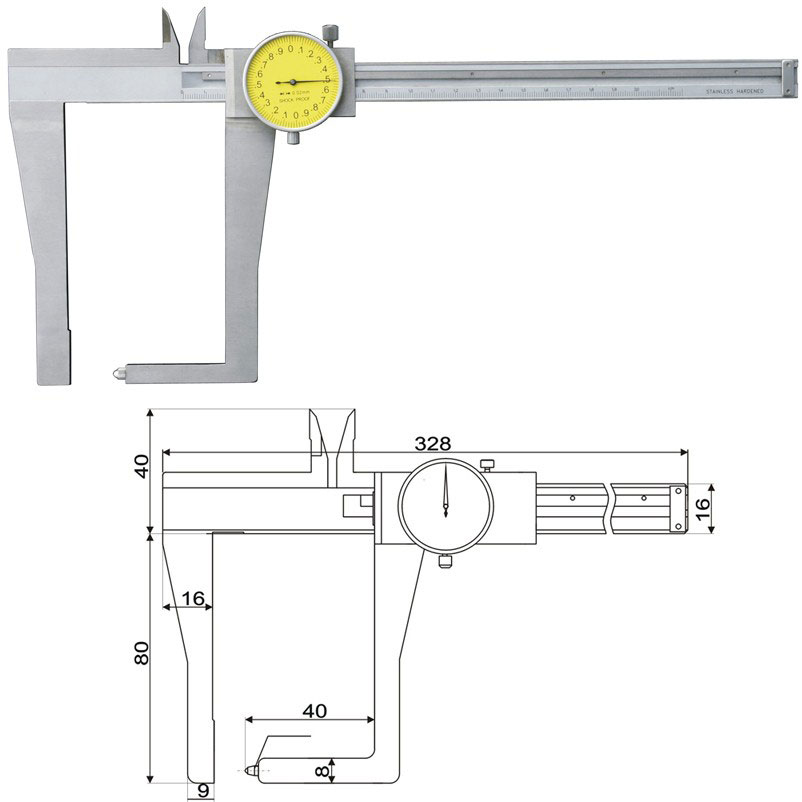

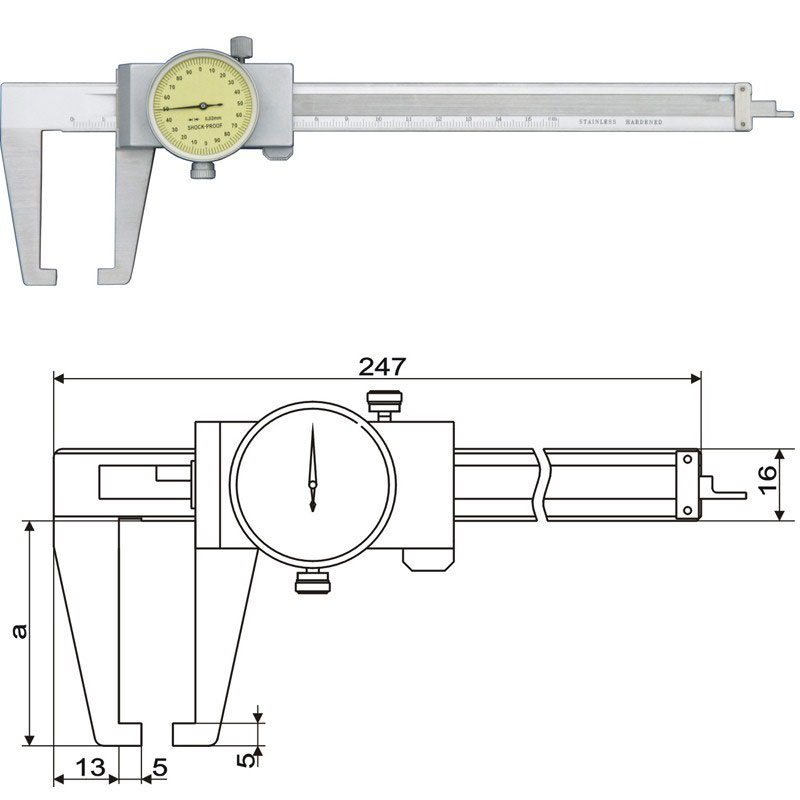

Outside Groove Dial Calipers With Tube Thickness

Features

* Measuring from one end to the other end of groove
* Measuring tube thickness of big workpiece
* Easy to read clearly
* With an adjustable dial face which can be fastened by a clamping screw

Technical Data

ID	Range mm	Graduation mm/inch	Remark
174-144A	0-200	0.02

---
