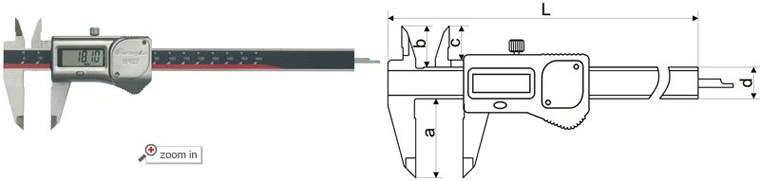

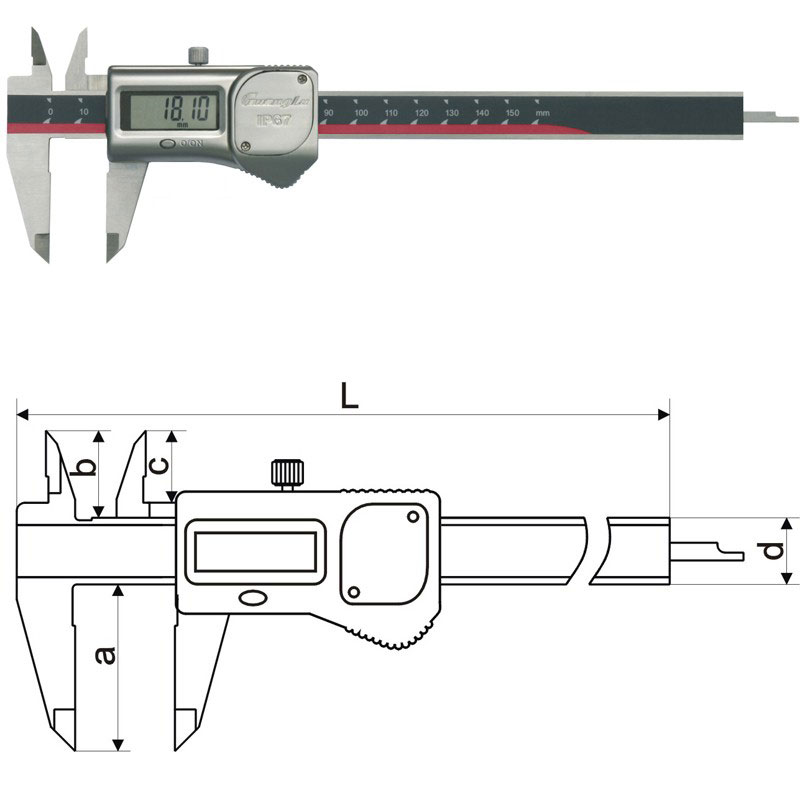

Features
-
* New Independent Intellectual Property Conductive Sensor and Measuring System
* Conform to IP67 and can be used in cutting liquid conditions
Technical Data
| ID | Range inch | mm |
Resolution inch | mm |
Accuracy inch | mm |
L mm |
a mm |
b mm |
c mm |
d mm |
Remark | |||
| 110-801 | 6" | 0-150 | .0005" | 0.01 | ±0.001" | ±0.03 | 240 | 41 | 22 | 16.5 | 16 | |
| 110-801G | 6" | 0-150 | .0005" | 0.01 | ±0.001" | ±0.03 | 240 | 41 | 22 | 16.5 | 16 | |
| 110-802 | 8" | 0-200 | .0005" | 0.01 | ±0.001" | ±0.03 | 290 | 50 | 24 | 19.5 | 16 | |
| 110-802G | 8" | 0-200 | .0005" | 0.01 | ±0.001" | ±0.03 | 290 | 50 | 24 | 19.5 | 16 | |
| 110-803 | 12" | 0-300 | .0005" | 0.01 | ±0.0015" | ±0.04 | 400 | 60 | 25 | 20.5 | 17 | |
| 110-803G | 12" | 0-300 | .0005" | 0.01 | ±0.0015" | ±0.04 | 400 | 60 | 25 | 20.5 | 17 | |

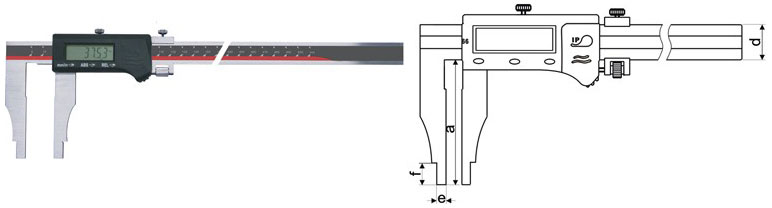

Features
-
* New conductive sensor measuring system of independent intellectual property
* Conform to IP66 level
* Can be exposed to cooling fluid, water, dust or oil
* It is easy to use, unnecessary to clean the caliper
* With power on/off. Leave it aside still for 20 minutes and it'll be power off automatically
* Provided with a fine-adjustment carriage
* Round measuring faces for accurate inside measurement

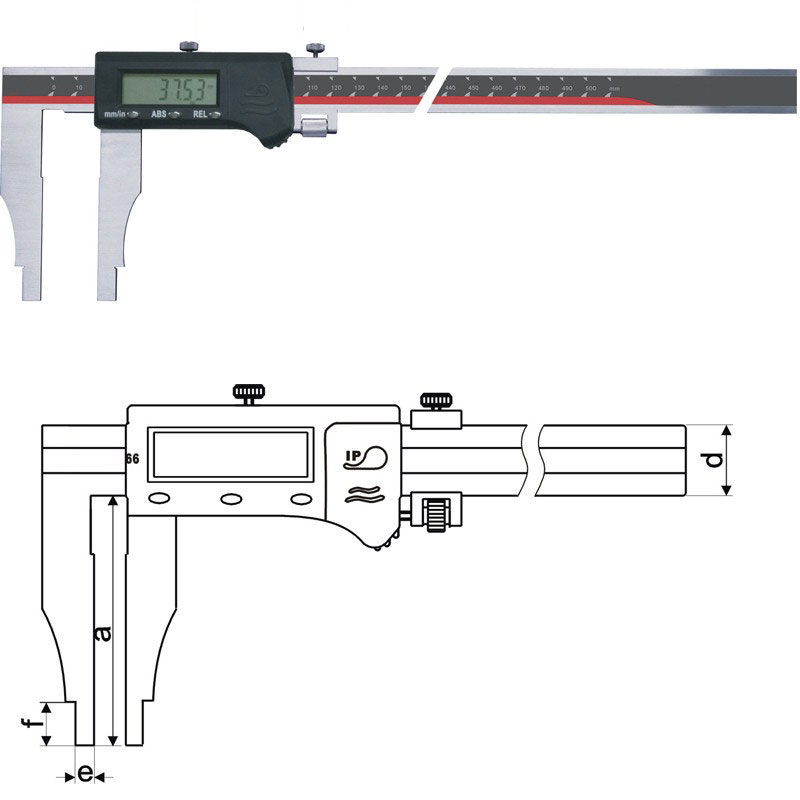

Technical Data
| ID | Range inch | mm |
Resolution inch | mm |
Accuracy inch | mm |
a mm |
d mm |
e mm |
f mm |
Remark | |||
| 110-707-1 | 40" | 0-1000 | .0005" | 0.01 | ±0.002" | ±0.07 | 200 | 31 | 10 | 24 | |
| 110-707 | 40" | 0-1000 | .0005" | 0.01 | ±0.002" | ±0.07 | 150 | 31 | 10 | 24 | |
| 110-704 | 20" | 0-500 | .0005" | 0.01 | ±0.002" | ±0.05 | 100 | 24 | 10 | 18 | |
| 110-704-1 | 20" | 0-500 | .0005" | 0.01 | ±0.002" | ±0.05 | 150 | 24 | 10 | 18 | |
| 110-705 | 24" | 0-600 | .0005" | 0.01 | ±0.002" | ±0.05 | 100 | 24 | 10 | 18 | |
| 110-705-1 | 24" | 0-600 | .0005" | 0.01 | ±0.002" | ±0.05 | 150 | 24 | 10 | 18 | |
| 110-706 | 32" | 0-800 | .0005" | 0.01 | ±0.002" | ±0.06 | 150 | 31 | 10 | 24 | |
| 110-706-1 | 32" | 0-800 | .0005" | 0.01 | ±0.002" | ±0.06 | 200 | 31 | 10 | 24 | |

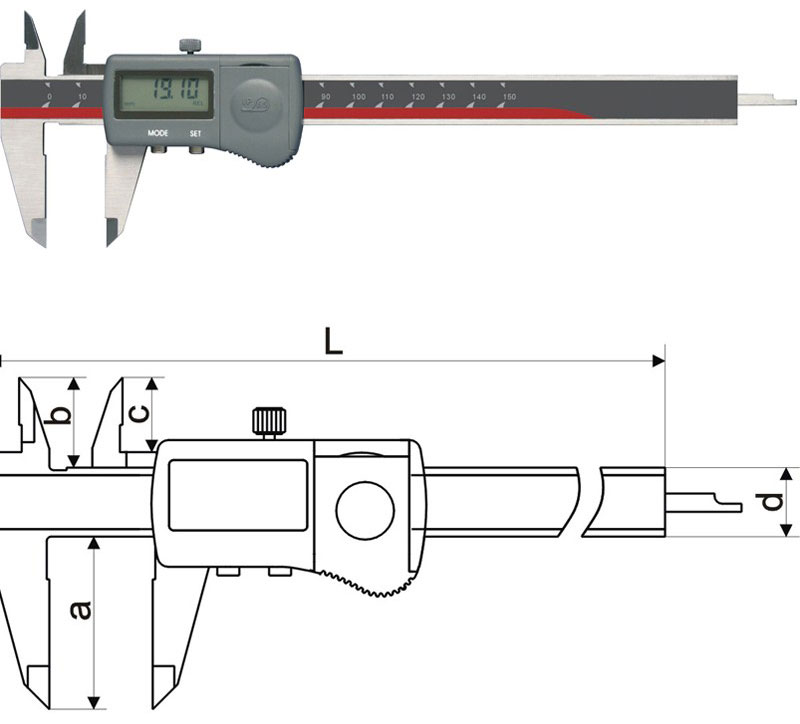

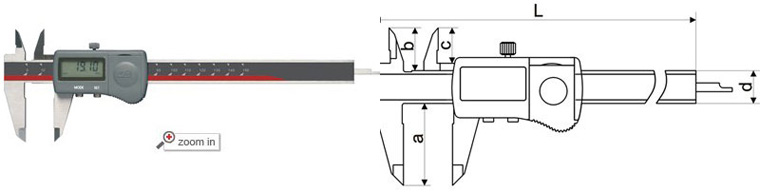

Features
-
* Conform to IP65 level and can be used in cutting liquid conditions
* Digital calipers with swiss chips
Technical Data
| ID | Range inch | mm |
Resolution inch | mm |
Accuracy inch | mm |
L mm |
a mm |
b mm |
c mm |
d mm |
Remark | |||
| 110-601 | 6" | 0-150 | .0005" | 0.01 | ±0.001" | ±0.03 | 236 | 40 | 21 | 16.5 | 16 | |
| 110-602 | 8" | 0-200 | .0005" | 0.01 | ±0.001" | ±0.03 | 286 | 50 | 24 | 19.5 | 16 | |

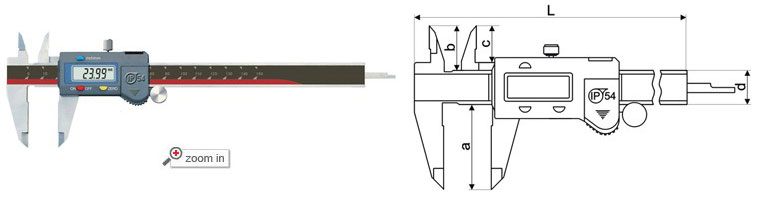

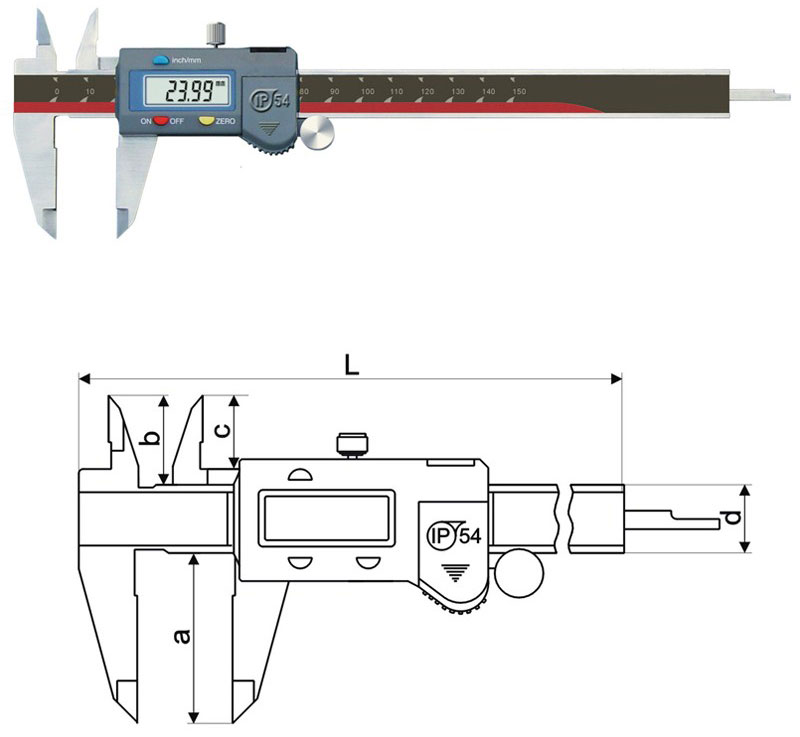

Features
-
* Can be used in workshop conditions
* Incorporates absolute measurement system
* Conform to IP54 and with a function of first level water resistance and dust proof
* Can be exposed to water, dust or oil
* Power on/off
* mm/inch conversion
* Zero-setting at any position
* Data output
Technical Data
| ID | Range inch | mm |
Resolution inch | mm |
Accuracy inch | mm |
L mm |
a mm |
b mm |
c mm |
d mm |
Remark | |||
| 111-801 | 6" | 0-150 | .0005" | 0.01 | ±0.001" | ±0.03 | 236 | 40 | 21 | 16.5 | 16 | |
| 111-802 | 8" | 0-200 | .0005" | 0.01 | ±0.001" | ±0.03 | 286 | 50 | 24 | 19.5 | 16 | |
| 111-803 | 12" | 0-300 | .0005" | 0.01 | ±0.0015" | ±0.04 | 400 | 60 | 25 | 20.5 | 17 | |
Features
-
* With both vernier reading and digital reading

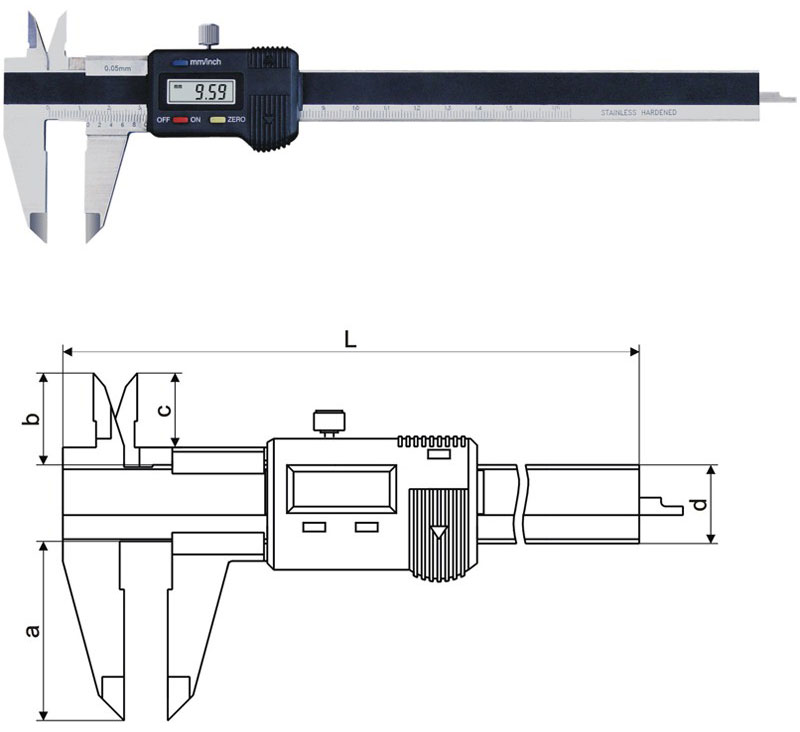

Technical Data
| ID | Range inch | mm |
Resolution inch | mm |
Accuracy inch | mm |
L mm |
a mm |
b mm |
c mm |
d mm |
Remark | |||
| 101-101 | 6" | 0-150 | .0005" | 0.01 | ±0.001" | ±0.03 | 246 | 40 | 21 | 16.5 | 17 | |
| 101-102 | 8" | 0-200 | .0005" | 0.01 | ±0.001" | ±0.03 | 300 | 50 | 24 | 19.5 | 17 | |
| 101-103 | 12" | 0-300 | .0005" | 0.01 | ±0.0015" | ±0.04 | 400 | 60 | 25 | 25.5 | 17 | |

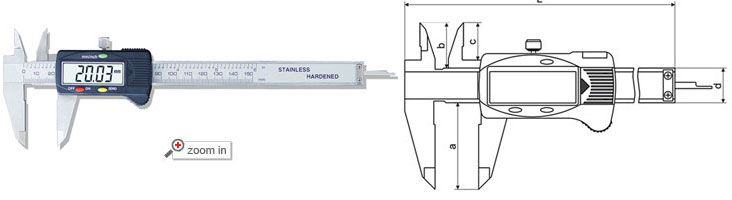

Features
-
* High precision
* 3V battery is better to envir-onmental protection
* Quick display of the measured value
* With big LCD display
* High cost performance
Technical Data
| ID | Range inch | mm |
Resolution inch | mm |
Accuracy inch | mm |
L mm |
a mm |
b mm |
c mm |
d mm |
Remark | |||
| 111-101V | 6" | 0-150 | .0005" | 0.01 | ±0.001" | ±0.03 | 236 | 40 | 21 | 16.5 | 16 | |
| 111-101VG | 6" | 0-150 | .0005" | 0.01 | ±0.001" | ±0.03 | 236 | 40 | 21 | 16.5 | 16 | |
| 111-102V | 8" | 0-200 | .0005" | 0.01 | ±0.001" | ±0.03 | 286 | 50 | 24 | 19.5 | 16 | |
| 111-102VG | 8" | 0-200 | .0005" | 0.01 | ±0.001" | ±0.03 | 286 | 50 | 24 | 19.5 | 16 | |
| 111-103V | 12" | 0-300 | .0005" | 0.01 | ±0.0015" | ±0.04 | 400 | 60 | 25 | 20.5 | 17 | |
| 111-103VG | 12" | 0-300 | .0005" | 0.01 | ±0.0015" | ±0.04 | 400 | 60 | 25 | 20.5 | 17 | |

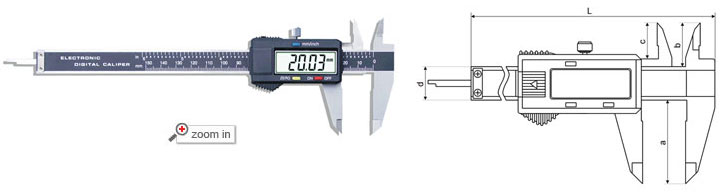

Features
-
* Designed for left-handers
* inch/mm switch
* Zero-setting at any position.
* Power on/off
Technical Data
| ID | Range inch | mm |
Resolution inch | mm |
Accuracy inch | mm |
L mm |
a mm |
b mm |
c mm |
d mm |
Remark | |||
| 111-221 | 6" | 0-150 | .0005" | 0.01 | ±0.001" | ±0.03 | 236 | 40 | 21 | 16.5 | 16 | |
| 111-222 | 8" | 0-200 | .0005" | 0.01 | ±0.001" | ±0.03 | 284 | 50 | 24 | 19.5 | 16 | |
| 111-223 | 12" | 0-300 | .0005" | 0.01 | ±0.001" | ±0.03 | 400 | 60 | 25 | 20.5 | 17 | |

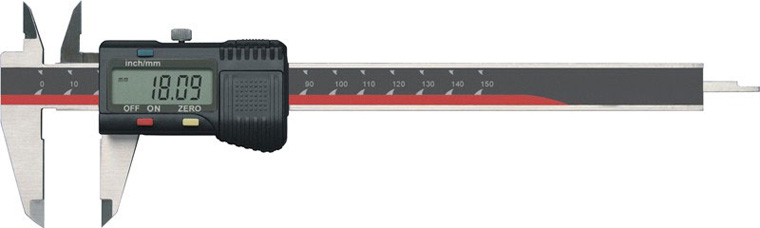

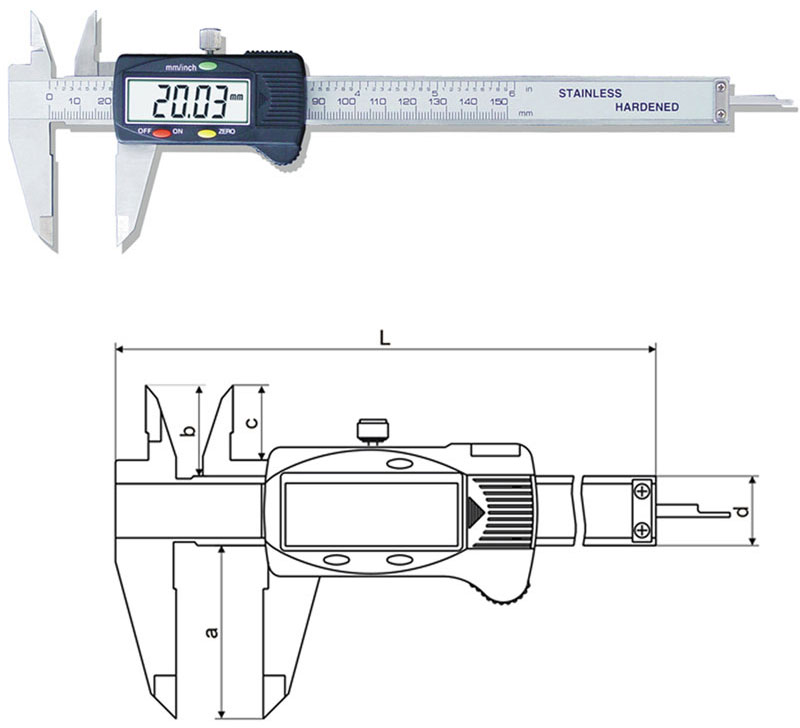

Features
-
* Large and clear LCD readout.
* Power on/off.
* Zero-setting at any position.
* mm/inch conversion.
* Data output.
Technical Data
| ID | Range inch | mm |
Resolution inch | mm |
Accuracy inch | mm |
L mm |
a mm |
b mm |
c mm |
d mm |
Remark | |||
| 111-101B | 6" | 0-150 | .0005" | 0.01 | ±0.001" | ±0.03 | 236.00 | 40.00 | 21.00 | 16.50 | 16.00 | |
| 111-102B | 8" | 0-200 | .0005" | 0.01 | ±0.001" | ±0.03 | 286.00 | 50 | 24.00 | 19.50 | 16.00 | |
| 111-103B | 12" | 0-300 | .0005" | 0.01 | ±0.0015" | ±0.04 | 400.00 | 60.00 | 25.00 | 20.50 | 17.00 | |
