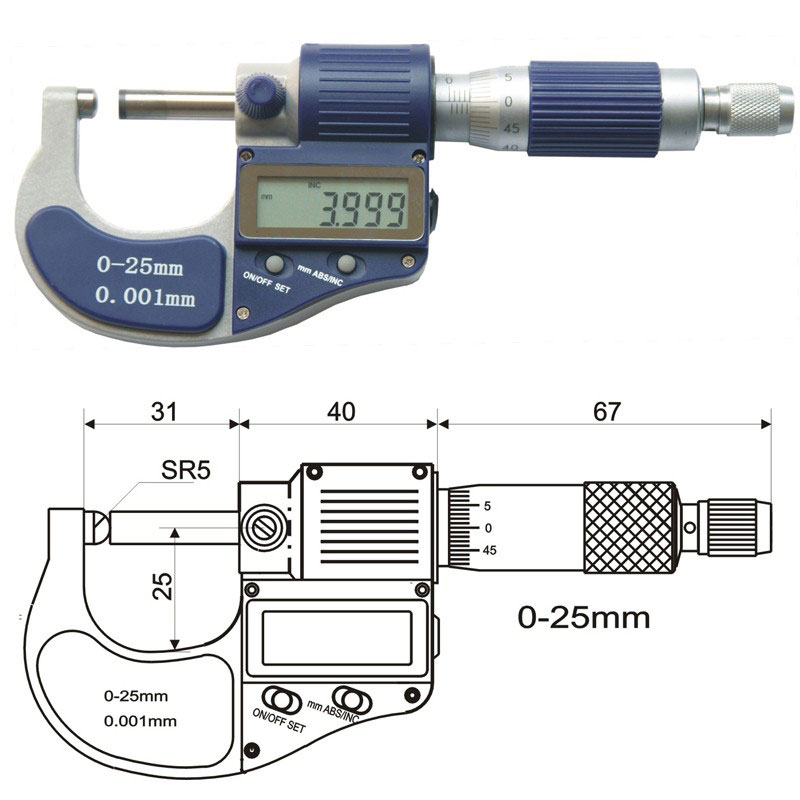

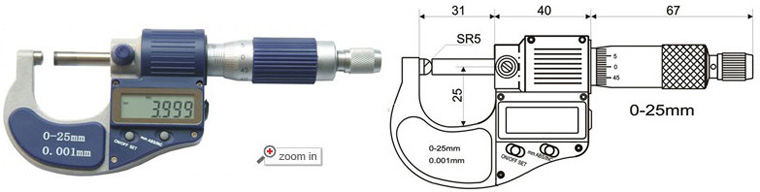

Cable Gland Outside Digital Micrometers (Type A)
Tube Digital Micrometers

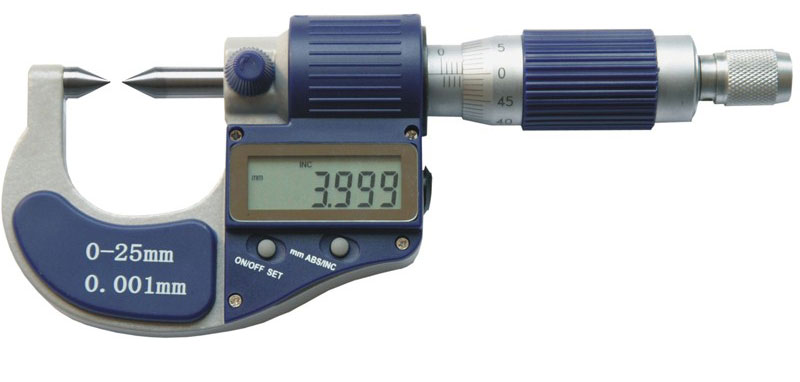

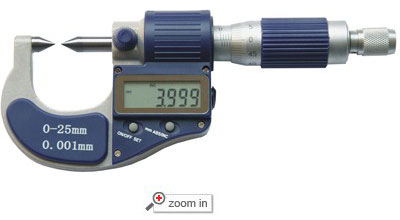

Point Type Digital Micrometers
Features
-
* Extra large LED readout with 0.001mm resolution
* With data output
* Light weight design allows measurements to be taken with the micrometer held in one hand
* Functions: Automatic power off, mm/inch conversion,Zero-Set,Data hold, Value presetting and tolerance limit setting

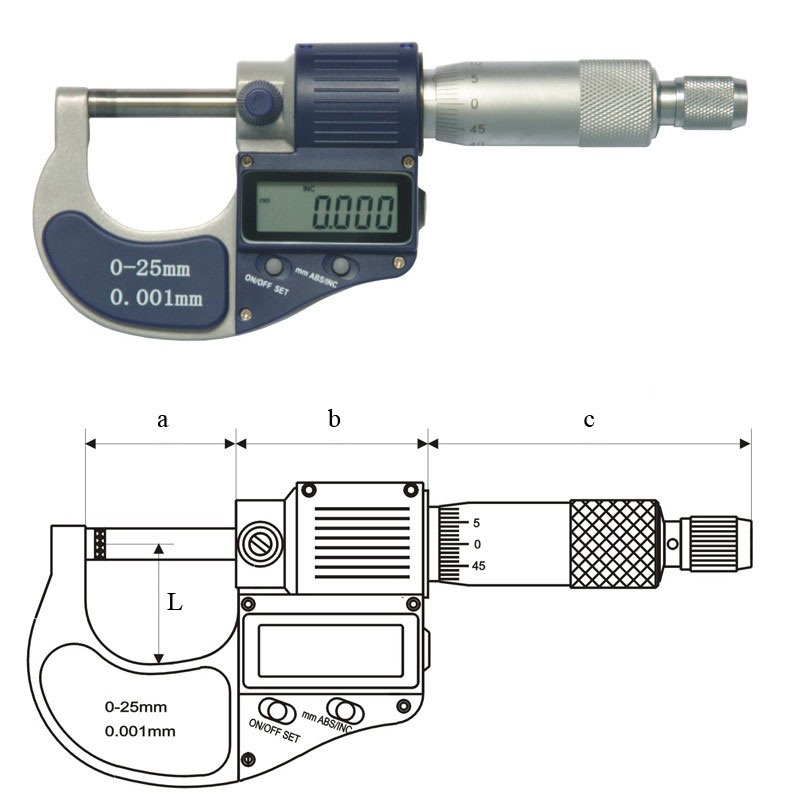

Technical Data
| ID | Range inch | mm |
Resolution inch | mm |
L mm |
a mm |
b mm |
c mm |
Remark | ||

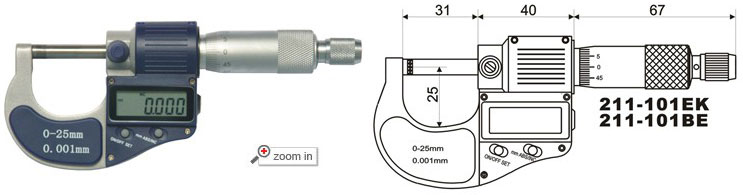

| 211-101EK | 0-1" | 0-25 | 0.00005" | 0.001 | 25 | 31 | 40 | 67 | |
| 211-101BE | 0-1" | 0-25 | 0.00005" | 0.001 | 25 | 31 | 40 | 67 | |
| 211-101E | 0-1" | 0-25 | 0.00005" | 0.001 | 25 | 31 | 40 | 67 | |
| 211-101EP | 0-1" | 0-25 | 0.00005" | 0.001 | 25 | 31 | 40 | 67 | |
| 211-102EK | 1-2" | 25-50 | 0.00005" | 0.001 | 35 | 56 | 40 | 67 | |
| 211-103EK | 2-3" | 50-75 | 0.00005" | 0.001 | 45 | 81 | 40 | 67 | |
| 211-104EK | 3-4" | 75-100 | 0.00005" | 0.001 | 55 | 100 | 40 | 67 | |
Features
-
* LCD displays measuring data and makes direct correct
* readout with resolution of 0.001mm
* Origin setting, mm/inch conversion, switch of absolute measurement and incremental measurement, data output
* Carbide-tipped measuring faces
* For measuring wall thickness of various types of tubing etc.
* Ratchet ensures invariable measurement and accurate repeatable reading
* 1 x SR44 battery
Technical Data
| ID | Range inch | mm |
Resolution inch | mm |
Remark | ||
| 216-101 | 0-1" | 0-25 | 0.00005" | 0.001 | |
| 216-102 | 1-2" | 25-50 | 0.00005" | 0.001 | |
| 216-103 | 2-3" | 50-75 | 0.00005" | 0.001 | |
| 216-104 | 3-4" | 75-100 | 0.00005" | 0.001 | |
Features
-
* LCD displays measuring data and makes direct and correct readout with resolution of 0.001 mm
* Origin setting, mm/inch conversion, switch of absolute measurement and incremental measurement, data output
* Carbide-tipped measuring faces
* Pointed anvil and spindle for measuring the web thickness of drills, small grooves, keyways etc. Pointed anvil and spindle for measuring small grooves, keyways etc. areas of restricted access
* Measuring faces are hardened and precision ground to ensure high-precision and stability
* Ratchet ensures invariable measurement and accurate repeat?able reading
* 1 x SR44 battery
Technical Data
| ID | Range inch | mm |
Resolution inch | mm |
Remark | ||
| 211-221 | 0-1" | 0-25 | 0.00005" | 0.001 | |
| 211-222 | 1-2" | 25-50 | 0.00005" | 0.001 | |
| 211-223 | 2-3" | 50-75 | 0.00005" | 0.001 | |
| 211-224 | 3-4" | 75-100 | 0.00005" | 0.001 | |
